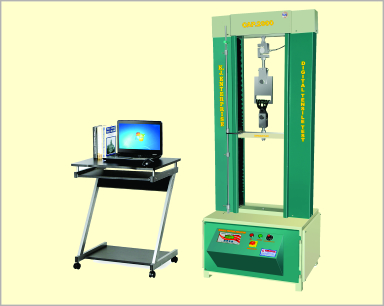

Double Pillar Tensile Testing Machine
To meet the varied requisites of our valued clients, we are instrumental in providing best in class tensile testing machine. Range from 50 kgs upto 10000 kgs, with higher least count, stress and strain elongation with self inbuilt memories of reading upto 20 nos. Used to find out the tensile strength of object, our offered testing machine is available from us on numerous specifications to choose from. This testing machine is developed utilizing premium quality material under the strict observation of our professionals.
Key Features
Detailed Specifications
Load capacity: 5000 KGF (Range from 50 kgs to 10000 kgs available). Accuracy: ±1%. Load cell accuracy: ±1%. Higher least count for precise measurements.
Max cross head: 800mm. Cross head speed: 1mm/min to 500mm/min with speed control. Variable speed control for different testing requirements.
Measurement unit: Kilogram, Newton. PC software for showing load unit, elongation, max load. System can display and print numeric results with system setup. LED display type for clear visibility.
System compatible for string, cable, rope, wire, rod, cloth, paper, elastic material with proper attachments. Pre-loaded algorithm for different materials with user setup.
System can measure tensile, compression, shear, and peel tests. Versatile testing machine suitable for multiple test types with appropriate fixtures.
PC software included for comprehensive data analysis. Self inbuilt memories of reading up to 20 nos. System can display and print numeric results. Stress and strain elongation measurements with data storage.
1 year warranty with software & hardware with technical support. Training about system & technology by qualified trainer on site. Ongoing technical assistance available.
We are designing and customized above machine as per customers requirement. Available in various specifications from 50 kgs to 10000 kgs capacity.
